Description

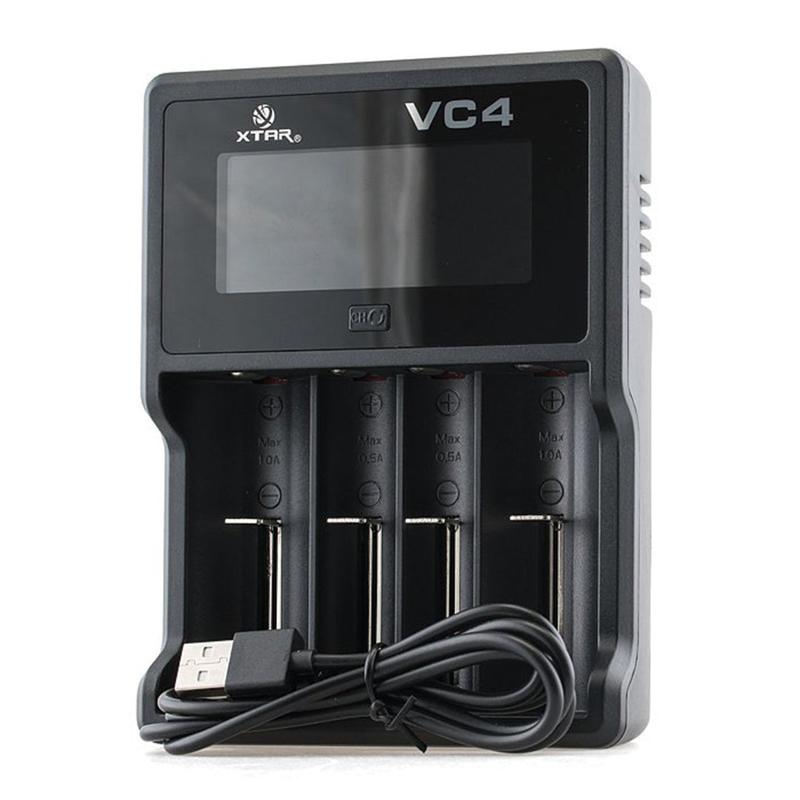

The XTAR VC4 is an e-cigarette battery charger which combines intelligent design and safety to provide with a truly high-level device. The 4 bay design means you can charge a variety of different battery sizes at the same time.
Specifications:
- The creative LCD screen displays charging current, battery voltage, charging capacity. Moreover, it intelligently recognises/ display/ charge Ni-MH and Li-ion batteries at the same time
- Intelligently identify input power and automatically adjust suitable charging method and charging current from 0.1A to 1.0A and max up to 0.5A*4 / 1.0A*2. Using 5V 2.1A input power can maximize the advantages of the VC4 charger
- Three stages of charging (TC-CC-CV) can prolong your batteries’ life
- Soft start can avoid sudden high current to prolong battery lifespan
- Foreknow the battery life - After discharge, your batteries to the cut off voltage and recharge in VC4, if "0000mAh" shows 70% of the nominal capacity which means that your battery life is almost to an end.
Contents:
- 1 x VC4 Charger by XTAR
Lithium batteries charging parameter:
- Input Power: DC 5.0V 2.1A
- 0.5A CC Current: 500±50m A
- 1.0A CC Current: 1000±80m A
- Cut-off Voltage: 4.20±0.05V
- Operation Temperature: 0-40℃
Ni-MH batteries charging parameter:
- Input Power: DC 5.0V 2.1A:
- 0.5A Pulse Charging Current: 500±50 mA:
- 1.0A Pulse Charging Current: 1000±80 mA
- Cut-off Voltage: 1.45±0.1V
- Operation Temperature: 0-40℃
